LED STREET LIGHT is a directional light, with low power consumption, good driver performance, fast response, high shock resistance, long lifespan, green environment protection, it's widely used in roadway illumination, residential lighting.
Our Product advantage:
1. Environmental high quality aluminum, strong heat dissipation, excellent corrosion resistance, anti-thunder and waterproof.
2. Toughened glass cover, good transparency, wide beam angle.
3. Using international top brand LED chip, ensure light fixture stable, and in long lifespan.
4. Based on the characteristics of the road, specializing in led lens design, using the special optics technology, and same luminance distribution to make the light evenly distributed on the ground, to ensure the best uniformity and usage.
5. IP65, and good self-cleaning function to reduce the quantity of maintenance.
The installation parameters for LED Street Light
| Specification | 80W LED Street Light | ||||||
| Luminous Flux | 6120lm | ||||||
| Installation Height |
Centre intensity of illumination |
Average intensity of illumination |
Even illumination |
Power distribution density |
Lamp pole distance |
Street width |
Efficiency spot cut off for one light |
| 4m | 86Lux | 48Lux | 0.63 | 1.16w/m2 | 12m | street width | 13.5m X 5m |
| 5m | 60Lux | 39Lux | 0.75 | 0.73w/m2 | 15m | 17m X 6m | |
| 6m | 52Lux | 21Lux | 0.59 | 0.55w/m2 | 18m | Two lanes | 20m X 7.5m |
| 7m | 31Lux | 16Lux | 0.66 | 0.47w/m2 | 21m | 24m X 8.5m | |
| 8m | 29Lux | 13Lux | 0.61 | 0.41w/m2 | 24m | 27.5m X 10m | |
| 9m | 23Lux | 10Lux | 0.58 | 0.37w/m2 | 27m | 31m X 11m | |
| 10m | 20Lux | 7.5Lux | 0.58 | 0.22w/m2 | 30m | Three lanes | 34m X 12.5m |
| 11m | 16Lux | 4.1Lux | 0.51 | 0.16w/m2 | 35m | 35m X 14m | |
| 12m | 40m | 41m X 15m | |||||
| Specification | 120W LED Street Light | ||||||
| Luminous Flux | 9120lm | ||||||
|
Installation Height |
Centre intensity of illumination |
Average intensity of illumination |
Even illumination |
Power distribution density |
Lamp pole distance |
Street width |
Efficiency spot cut off for one light |
| 4m | 108Lux | 58Lux | 0.63 | 1.51w/m2 | 12m | street width | 13.5m X 5m |
| 5m | 87Lux | 39Lux | 0.75 | 1.21w/m2 | 15m | 17m X 6m | |
| 6m | 60Lux | 25Lux | 0.59 | 0.72w/m2 | 18m | Two lanes | 20m X 7.5m |
| 7m | 45Lux | 20Lux | 0.66 | 0.61w/m2 | 21m | 24m X 8.5m | |
| 8m | 33Lux | 18Lux | 0.61 | 0.54w/m2 | 24m | 27.5m X 10m | |
| 9m | 26Lux | 13Lux | 0.58 | 0.48w/m2 | 27m | 31m X 11m | |
| 10m | 22Lux | 9Lux | 0.58 | 0.28w/m2 | 30m | Three lanes | 34m X 12.5m |
| 11m | 17Lux | 7Lux | 0.56 | 0.24w/m2 | 35m | 35m X 14m | |
| 12m | 14Lux | 6Lux | 0.41 | 0.21w/m2 | 40m | 41m X 15m | |
| Specification | 160W LED Street Light | ||||||
| Luminous Flux | 11250lm | ||||||
|
Installation Height |
Centre intensity of illumination |
Average intensity of illumination |
Even illumination |
Power distribution density |
Lamp pole distance |
Street width |
Efficiency spot cut off for one light |
| 4m | 185Lux | 84Lux | 0.59 | 2.13w/m2 | 12m | street width | 13.5m X 5m |
| 5m | 120Lux | 55Lux | 0.75 | 1.70w/m2 | 15m | 17m X 6m | |
| 6m | 80Lux | 39Lux | 0.59 | 1.01w/m2 | 18m | Two lanes | 20m X 7.5m |
| 7m | 60Lux | 27Lux | 0.66 | 0.87w/m2 | 21m | 24m X 8.5m | |
| 8m | 46Lux | 23Lux | 0.61 | 0.76w/m2 | 24m | 27.5m X 10m | |
| 9m | 36Lux | 20Lux | 0.58 | 0.67w/m2 | 27m | 31m X 11m | |
| 10m | 30Lux | 18Lux | 0.58 | 0.40w/m2 | 30m | Three lanes | 34m X 12.5m |
| 11m | 25Lux | 13Lux | 0.56 | 0.34w/m2 | 35m | 35m X 14m | |
| 12m | 21Lux | 8Lux | 0.41 | 0.30w/m2 | 40m | 41m X 15m | |
|
|
|||||||

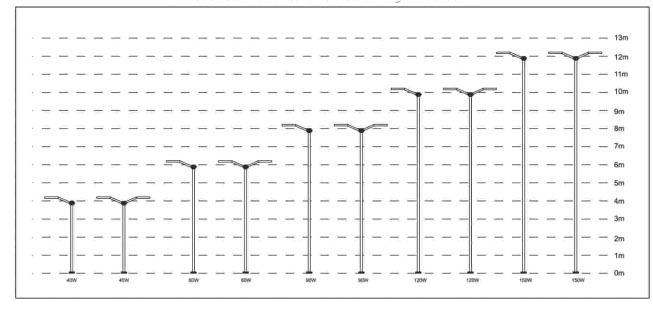

LED Street Light Installation Height Chart
Comparison between our LED Street Light and high pressure sodium street light
| Specification |
Actual input luminous flux |
Color temp |
CRI |
Average Illuminace |
Input Power |
| 80W LED street light | 6000LM | 5000K | ≥80 | 19-21 lux/6M | 80W |
| 150W high pressure sodium street light | 5600LM | 2000K | ≤25 | 18-201 lux/6M | 150W |
| 81W LED street light | 9000LM | 5000K | ≥80 | 18-20 lux/8M | 120W |
| 151W high pressure sodium street light | 9000LM | 2000K | ≤25 | 17-19 lux/8M | 225W |
| 82W LED street light | 12000LM | 5000K | ≥80 | 20-22 lux/8M | 160W |
| 152W high pressure sodium street light | 11200LM | 2000K | ≤25 | 19-21 lux/10M | 375W |
| 83W LED street light | 15000LM | 5000K | ≥80 | 21-24 lux/12M | 200W |
| 153W high pressure sodium street light | 14494LM | 2000K | ≤25 | 20-23 lux/12M | 585W |
